- new type:
- 6048m/c3
- old type:
- 6048m/c3
- category:
- brass cage deep groove ball bearing
name | 6048m/c3 | ||
---|---|---|---|
new model | 6048m/c3 | old model | 6048m/c3 |
inner d | 240mm | outer d | 360mm |
thick(mm) | 56mm | weight | 20kg |
1. steel cage deep groove ball bearing:
the retainer is most widely applied in the deep groove ball bearings, commonly used
in heavy machinery, metallurgy, mining, automotive, electrical instrumentation,
engineering machinery, and others. it’s advantages are low noise and flexible rotating.
however, it is not suitable for big vibration and high temperature.

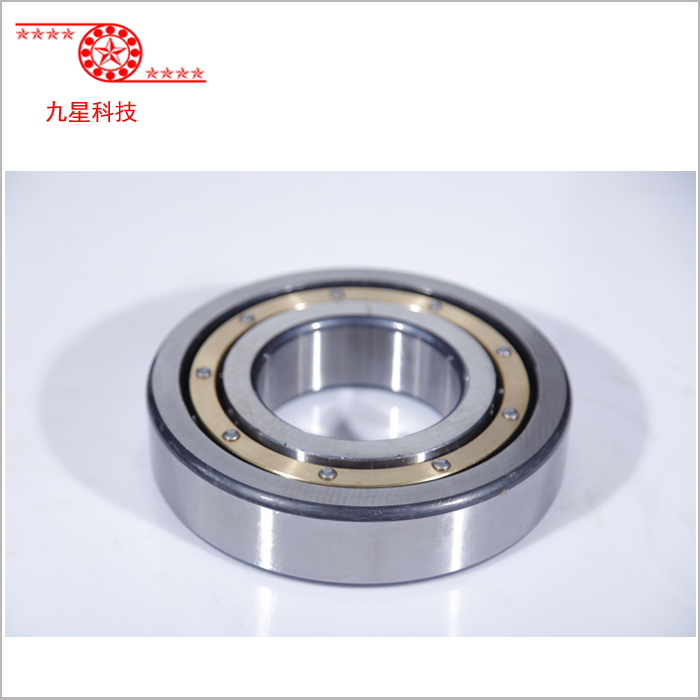

2. brass cage deep groove ball bearing:
such series cage could be subdivided into three types: m, ma, mb. m type structure
is guided by steel balls, it’s advantages are low noise, high speed, long life, small
friction coefficient, but is not suitable for strong impact and violent vibration. ma
is guided by outer ring. its advantage is high speed, long life, withstand higher
speed, environmental vibration and impact to bear ability is better than m type. its
shortcomings are high the friction coefficient , big noise. mb structure is guided by
inner ring, its advantage is running good with low speed , strong stability. faults are
big noise, high coefficient of friction, large vibration value. therefore, mb retainer is
used less in recent. in all, brass solid retainer mutual advantages as following: high
temperature , rubbing resistant, reliable, long lifetime.
3. bakelite cage deep groove ball bearing:
the cage has high mechanical strength, good corrosion resistance, anti-rust, heat
resistance and lubricity. meanwhile, it possesses light-weight, strong-strength, and
other irreplaceable usages. it’s mainly applied in light load and low noise working
environment, such as air conditioning compressor, high performance pump ect.
in our warehouse, we have all the following in stock:
6002m 6003m 6004m 6005m 6006m 6007m 6008m 6009m 6010m 6011m 6012m
6013m 6014m 6015m 6016m 6017m 6018m 6019m 6020m to the 6038m etc.
6202m 6203m 6204m 6205m 6206m 6207m 6208m 6209m 6210m 6211m 6212m
6213m 6214m 6215m 6216m 6217m 6218m 6219m 6220m to the 6238m etc.
6303m 6303m 6304m 6305m 6306m 6307m 6308m 6309m 6310m 6311m 6312m
6313m 6314m 6315m 6316m 6317m 6318m 6319m 6330m to the 6338m etc.
6402m 6403m 6404m 6405m 6406m 6407m 6408m 6409m 6410m 6411m 6412m
6413m 6414m 6415m 6416m 6417m 6418m 6419m 6420m to the 6438m etc.
